• Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems
  • Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems
  • Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems

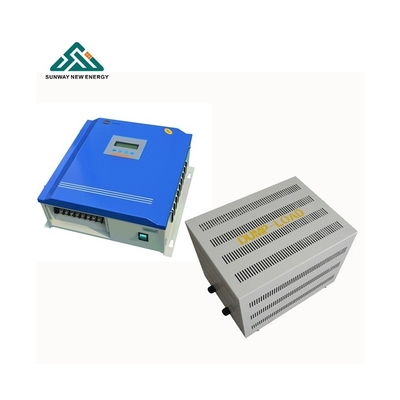

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems

제품 상세 정보:

원래 장소: 안후이, 중국
브랜드 이름: SUNEVER
모델 번호: SWC-3048VTA

결제 및 배송 조건:

가격: $285.00/pieces 1-9 pieces
포장 세부 사항: 판지 상자<br> 도매 1kw 2kw 3kw 24v 48v 96v mppt 풍력 및 태양열 하이브리드 풍력 발전기 충전 컨트롤러
공급 능력: 600개 부분 / 부분마다 달
최고의 가격 접촉

상세 정보
풍력 컨트롤러 유형: 그리드에 풍력제어기 인증서: CE, ISO
풍력 컨트롤러 보증: 36 개월 풍력 컨트롤러 정격 전력: 3KW 5KW
표시하다: LCD+LED 유형: PWM, 오프그리드 풍력 및 태양광 하이브리드 컨트롤러
강조하다:

Grid-Tied Wind Power Controller 3KW

,

5KW wind power controller grid-connected

,

wind system controller with warranty

제품 설명

  1. Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 0
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 1

FEATURES:

Core Electrical Design

  1. Adopts common positive polarity connection, with dual-line support for solar arrays
  2. Digital design combined with modular structure, ensuring high stability and reliability
  3. Wind turbine brake parameters are programmable via user keys
  4. Equipped with a backlit LCD screen to display real-time system operating parameters
  5. High energy conversion efficiency enabled by PWM charging technology

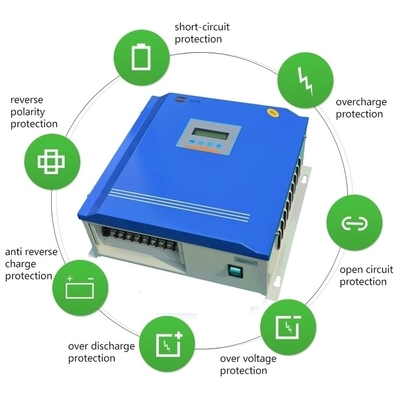

Comprehensive Protection Mechanisms

  1. Integrates multiple protection features: reverse connection protection, anti-reverse charging at night, battery overcharge protection, and charging current/voltage limiting protection
  2. Supports personalized configuration of Battery Management System (BMS) parameters and charging control strategies
  3. Intelligent alarm function triggers promptly when the system is in abnormal status
  4. Optional data communication module available for remote monitoring and management
  5. Built-in intelligent cooling system to ensure continuous and stable operation of the equipment
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 2
Model
1KW/24V,48V
2KW/48V,96V
3KW/48V,96V
Wind-turbine power[KW]
1
2
3
Rated wind-turbine voltage[V]
28.8 ; 57.6 ; 115.2 ; 144; 288






Electrical parameters



Consumption at standby [mA]
≤60


Consumption at night [mA]
≤20


Operating Temperature Range
-25ºC ~ +60ºC


Cooling Method
Convection with double cooling fans


Operating temperature
0%~98% Non-condensing


Terminal
Barrier terminal


Data-transfer port
RS485/232/WIFI/GPRS


Mounting
Wall


Main dimension(W*D*H)[mm]
380*355*150


Main-device net weight [kg]
8.5

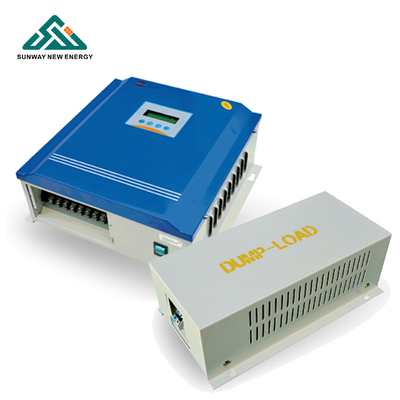

Dump dimension(W*D*H)[mm]
440*160*170
440*240*150
440*240*150
Dump-load net weight [kg]
4
7
8.5
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 3
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 4
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 5
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 6


Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 7
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 8
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 9
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 10
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 11



Package details

Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 12
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 13
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 14
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 15
Q1:Are you a factory or trade company?
We are a factory who has more than 10 years experience in manufacturing; strong aftersale service team and technical support. Free design according to client requirements.
Q2:Whats the MOQ? We have stock and semi-finished products with enough base materials for new sampleand order for all models, So small quantity order is accepted, it can meet your require.ment very well.
Q3:Why others price much cheaper? We try our best to ensure our quality to be the best one in the same level price products. We believe safety and effectiveness are the most important.
Q4:Can I have a sample for testing?
Yes, you are welcome to test samples before quantity order; Sample order will be sentout 2-3 days generally.
Q5:Can Iadd my logo on the products?
Yes,OEM and ODM are available for us. But you should send us the Trademark authori-zation letter.
Q6 :Do you have inspection procedures?
100% self-inspection before packing.
Grid-Tied Wind Power Controller 3KW/5KW – Compatible with Grid-Connected Wind Systems 16
